Features

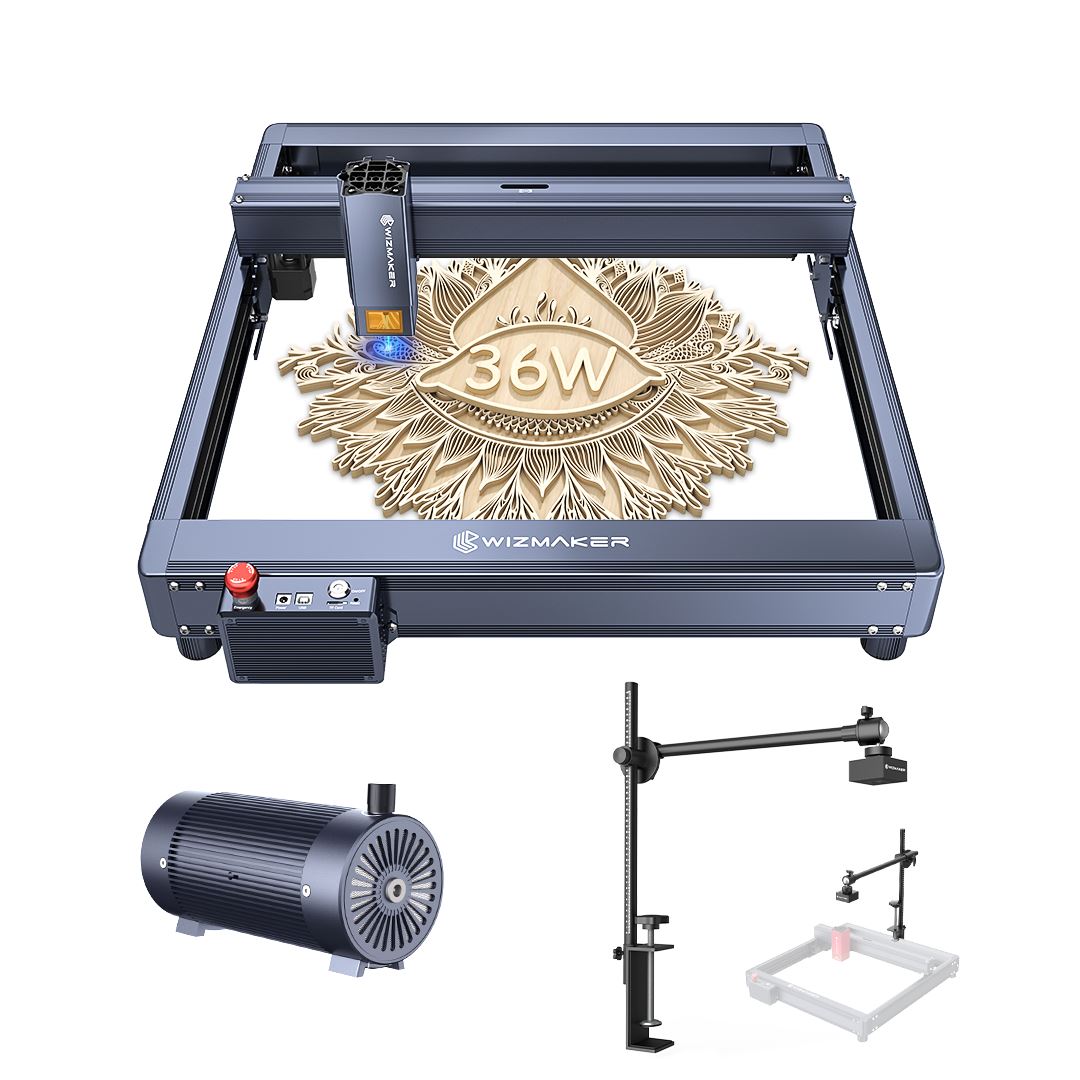

World's 36W Laser Engraver & Cutter
WIZMAKER L1 36W laser engraving machine with 144W machine power and 36W laser power. It can provide unrivaled speed and precision for all your engraving needs. WIZMAKER L1 36W Laser cutter can cut 18mm paulownia wood, 12mm black acrylic, and 0.1mm metal at one time. and up to 30mm paulownia wood, 40mm black acrylic, and 0.3mm metal. It can also directly engrave more than 400 kinds of materials such as metal, ceramics, glass, and leather.
High Precision and High Efficiency

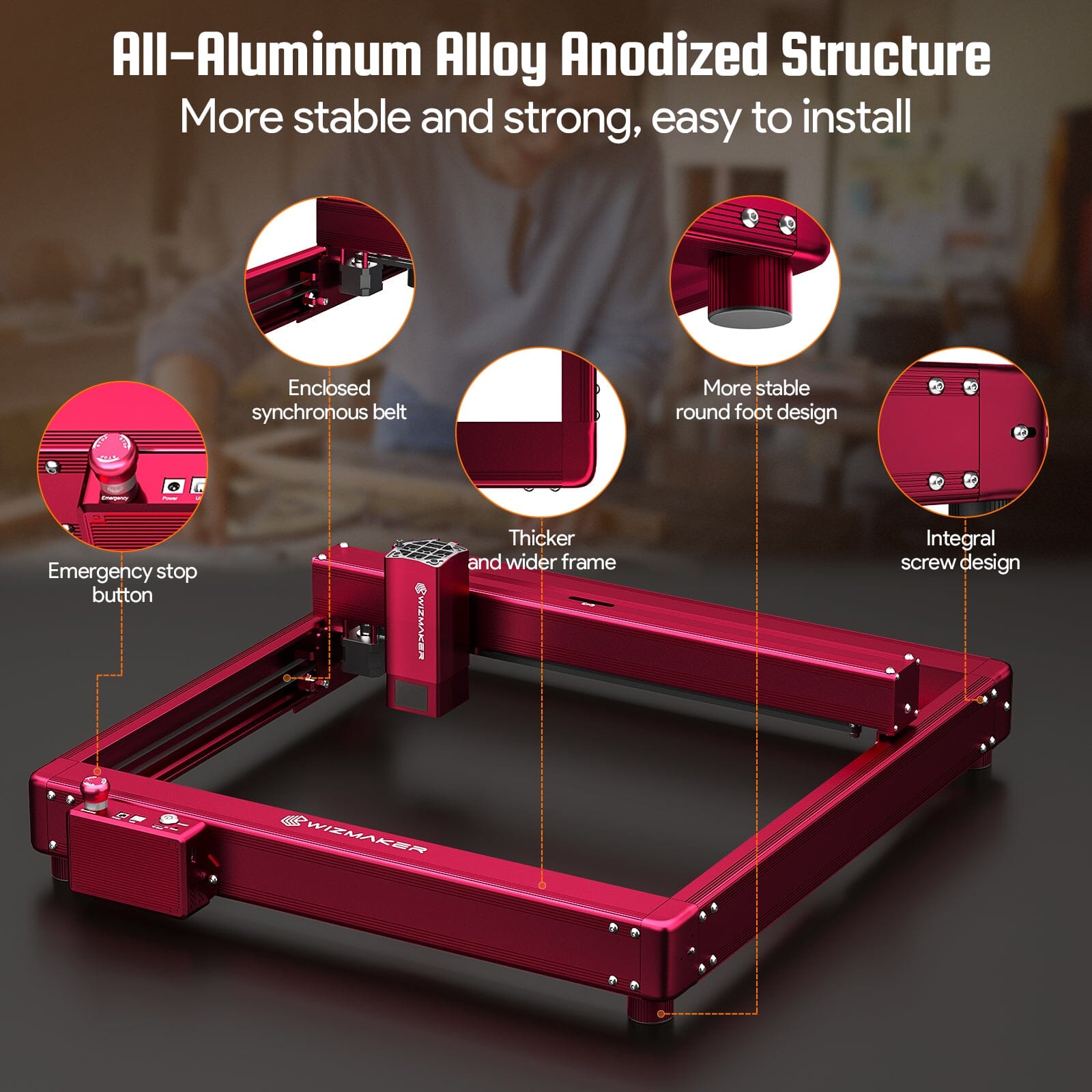

Upgraded 36W laser module support faster cutting and engraving speed. The ultra-fine laser focus is reduced to 0.06 x 0.08mm, providing you with higher precision artwork. The solid all-aluminum anodized structure, all-metal wheels, shafts, and closed synchronous belts, enable the laser module to ensure movement stability at high speeds up to 420mm/s. WIZMAKER 36W laser engraver saves 40%-80% time with higher efficiency than 10W laser engraving machine.
More Safe & Easy to Use
The red emergency button allows you to stop the operation in any unexpected situation. The laser eye shield on the laser module can effectively filter 97% of UV rays, protecting your eyes at all times. Two limit switches can position the laser module and control the movement trajectory. WIZMAKER laser engraver is equipped with a 32-bit motherboard, smarter and easier to use. The entire structure is designed for quick assembly and can be assembled in 10-25 minutes.
Support Multiple Software & File Format
WIZMAKER L1 is compatible with various mature engraving software, such as LaserGRBL(free), LightBurn (paid), support Win XP / Win 7 / Win 8 / Win 10 / MAC system (LightBurn). The engraving file format supports NC, BMP, JPG, PNG, DXF etc. WIZMAKER Laser engraver and cutter machine can be used for acrylic, slate, paper, cloth, brick, fruit, food, leather, etc. It will bring you a new DIY laser engraving experience!
Automatic Precision Positioning Materials
Without the LightBurn camera, when you need to accurately carve patterns on the material, you need to repeatedly preview the position and adjust the image. With the laser camera for engraver, you can locate the position and carving area of the material. You can directly move the carving pattern to the material you want to carve through the Lightburn software interface. Note: This laser camera is only compatible with LightBurn software.

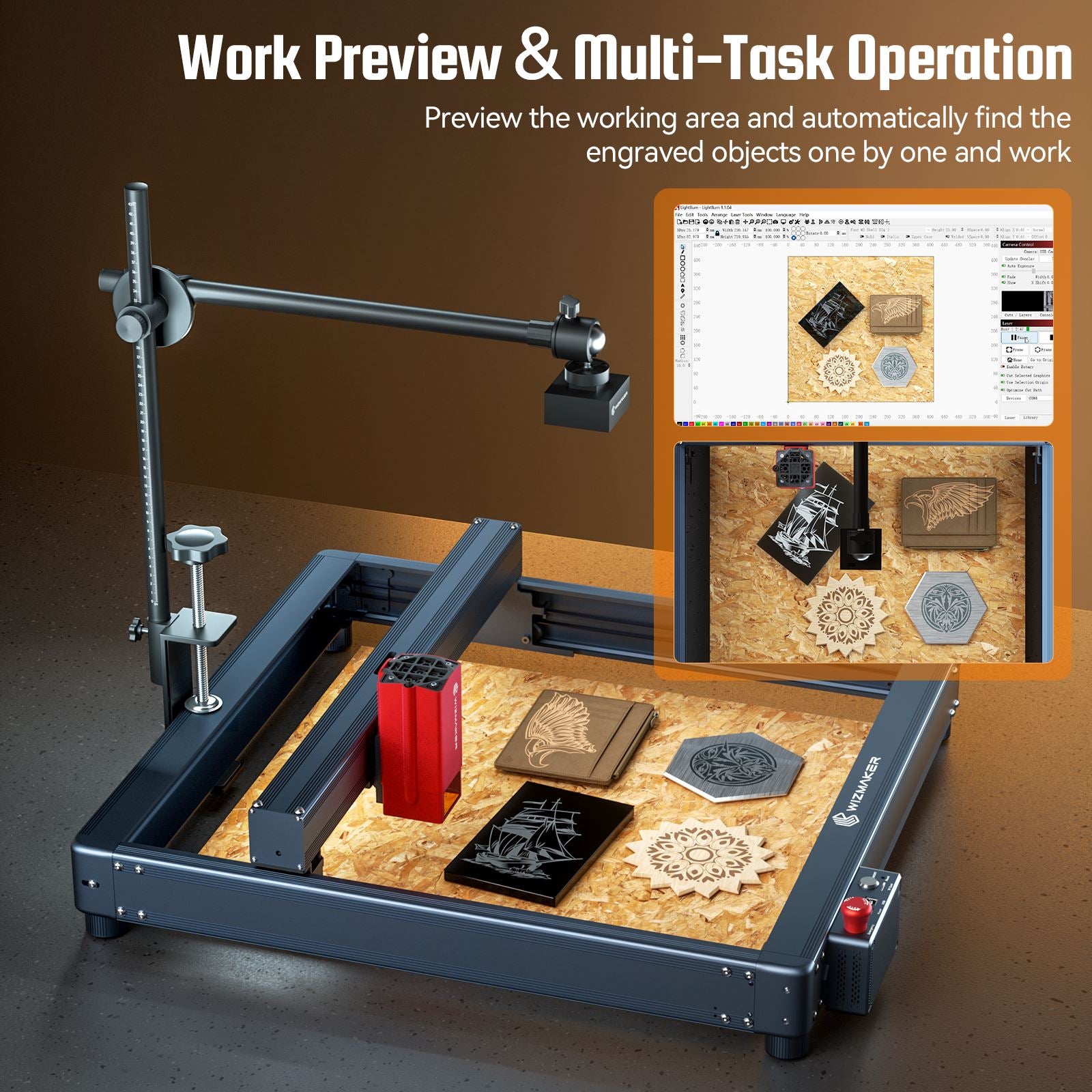

Preview of Works & Multi-task Engraving
This preview function can perfectly solve the positioning problem of irregular patterns, and you can directly design on the material surface. With the Lightburn camera, you can carve on different materials at once without previewing the position of each material, thus providing carving efficiency and accuracy on different carving materials.
High-Definition Video Recording
The WIZMAKER laser engraving camera has a wide-angle lens and can record videos. The field of view (D:92° H:86° V:56°) and shooting range (400*400mm) are very suitable for frame engraving machines within the range of 450*450mm. By delaying the shooting, you can record the entire engraving process in the video and record the creation process of each work.
